Vacuum Activation Machine For Car AT Panel And Column Cover Upper

Name: Vacuum Activation Machine For Car AT Panel And Column Cover Upper
Brand: Huazhuo
Price: 1 USD

Buy cheap Vacuum Activation Machine For Car AT Panel And Column Cover Upper product

Brand Name : Huazhuo

Model Number : HZ-BF-220618

Place of Origin : Made in China

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 500 SET/YEAR

Delivery Time : 60DAYS

Packaging Details : Packing by Wooden case，Shipping by sea

Item Name : Vacuum Activation Machine For Car AT Panel And Column Cover Upper

Voltage : 380V/Customize

Controlling System : PLC

Drive Mode : Servo

Weight : 1500kg

Deminisons : 2900*1550*2300

Speed : 75-90 Seconds/Piece

Working Stroke : 75MM-125MM

Usage : car AT panel and column cover upper

Contact Now

Vacuum Activation Machine For Car AT Panel And Column Cover Upper

Product Description

1. Controlled by PLC programmable controller,which is accurate and convenient.

2. This equipment is suitable for leather and other textile wrapping and edging of automotive interior parts, alignment positioning, vacuum activation, and male mold forming.

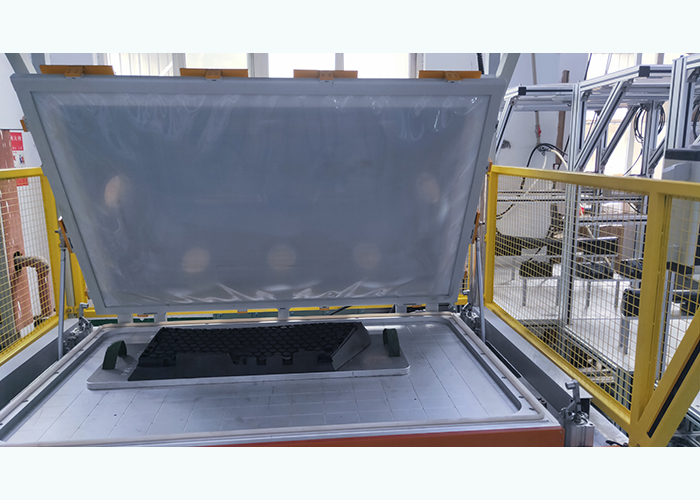

3. Pre-coated products will be placed in the positioner on the table of the machine manually, the oven will drop to heat the product, after reaching the aim temperature, the rubber membrane framework will rotate to cover the all product. Vacuum adsorb valve will open to adsorb products, which can make the degree of adhesion of cover and substrate can meet the standards of clients.

Technical Parameters:

Item Name	vacuum activation machine for car AT panel and column cover upper
Voltage	380V
Application Range	Car door armrests, front and co-driver side trims, upper trim panels, instrument cover covering
Controlling System	PLC
Drive Mode	Servo
Weight	1500kg
Welding Time	0.01-9.99 Seconds
Speed	75-90 Seconds/Piece
Working stroke	75MM-125MM
Deminisions	290015502300

Application Range:

Car door armrests, front and co-pilot side trims, upper trim panels and instrument cover wrapping

After-sales Service Provided:

1. One-year warranty service

2. Online support, Video technical support

Vacuum Activation Machine For Car AT Panel And Column Cover Upper
